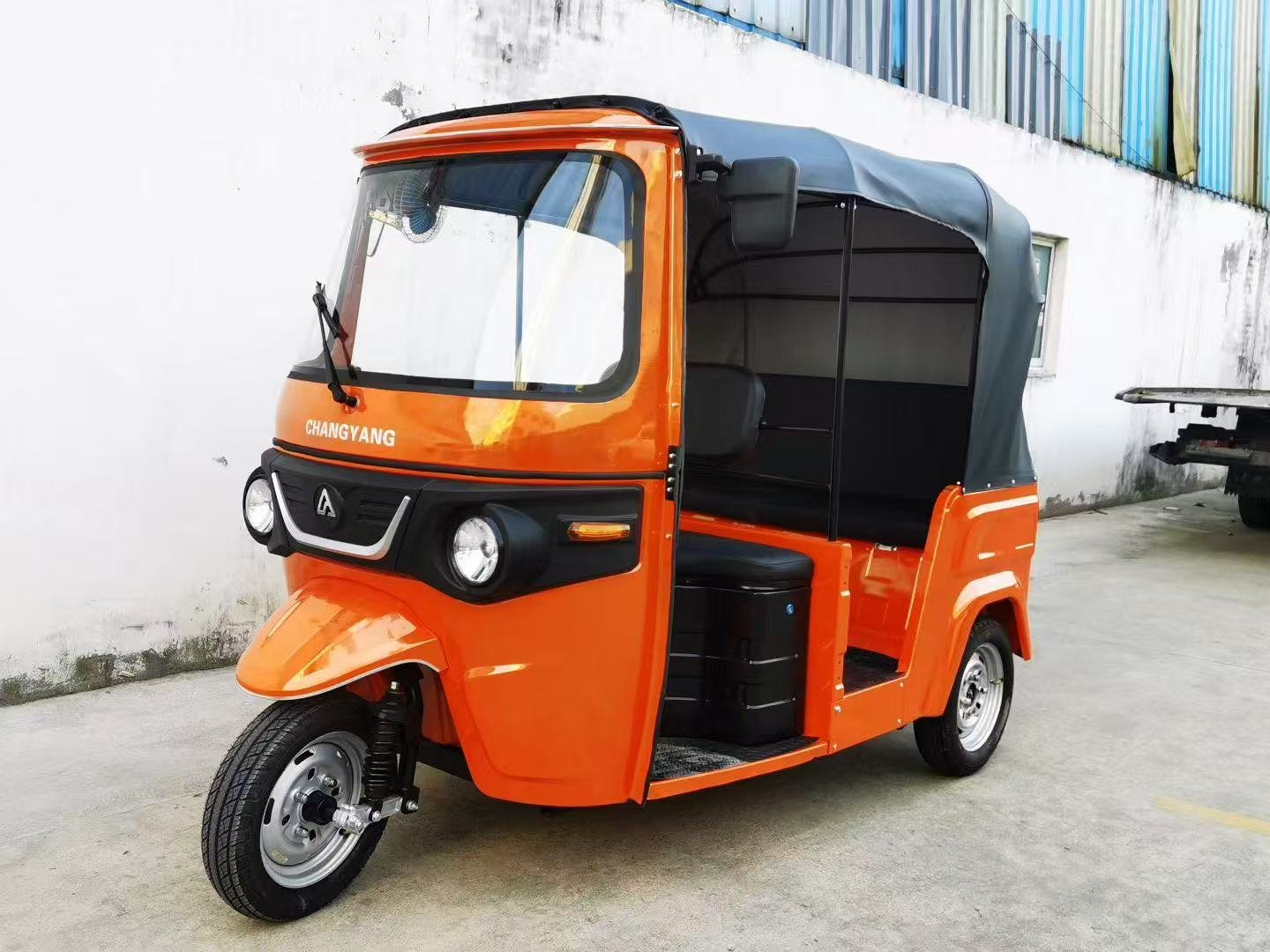

Gasoline Tuk-tuk 150cc/200cc/250cc
Description
| SPECIFICATION | |
| Model | KV-DDC |
| Power model | 200CC water cooling |
| Start Mode | Electric start |
| Battery | Lead acid battery 12V 28AH |
| Product Dimension | 2760*1350*1910mm |
| Front seat | 1150*350mm |
| Center seat | 760*260mm |
| Rear seat | 1180*350mm |
| Distance between front seat and rear seat | 620mm |
| Designed Speed (km/h) | 60km/h |
| Climbing angle | ≦25° 3km |
| Net weight (kg) | 440kg |
| Loading capacity | 500kg |
| Ground clearance | 330mm |
| Wheelbase | 2000mm |
| Wheel spacing | 1160mm |
| Meter | General |
| Brake (F/R) | Front drum brake and rear oil brake |
| Rear axle status | 220 oil brake full suspension |
| Rear absorber | Spring |
| Rear suspension | Bracket, connecting rod |
| Range | 260km |
| Pedal | Leather |
| Tire (F/R) | 400-12 |
| Radio | Support USB, Bluetooth |
| Fan | 12V |
| Fuel type | gasoline |
| Tank volume | 18L |
| Ceiling | waterproof cloth |
| Rain curtain | transparent plastic |
| Front absorber | 43 hydraulic single arm outer spring |
| Instrument | Mechanical rotation speed |
| Additional parts | With spare tire(400-12), folding seat, rear window, rain curtain (left and right), luggage rack, passenger handle, radio USB interface. |
| CKD | 14 units/20GP; 34 units/40HQ |
| SKD | 8 units/20GP; 16 units/40HQ |
